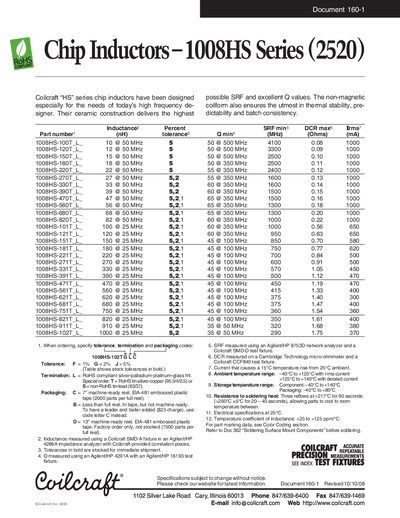

Specifications for the 1008HS series chip inductors.
The 1008HS series from Coilcraft provides chip inductors designed for high‑frequency applications, offering low DCR, high Q, and excellent thermal stability. Their ceramic construction ensures consistent performance across a wide temperature range.
The datasheet lists inductance values from 10 nH to 1000 nH, tolerance options, SRF limits, and packaging details such as tape and reel formats. Ordering information includes tolerance and packaging codes, and S‑parameter files are available on the Coilcraft website.
| Self‑resonant frequency (SRF) minimum | 500 MHz |
|---|---|
| Ambient temperature range | -40 °C to +125 °C |
| Temperature coefficient of inductance | +25 to +125 ppm/°C |
| Packaging – tape and reel | Tape 12000, 7" reel 2000, 13" reel 7500 |
| Weight per part | 28.3‑31.5 mg |
The SRF minimum for the 1008HS‑100T part is 500 MHz.
The inductors are rated for ambient temperatures from –40 °C to +125 °C.
S‑parameter files are available on the Coilcraft website or on a CD.
