Provide specifications information of 0402CS Series (1005) chip inductors, including rated voltage, rated current, rated power, frequency characteristics, temperature characteristics, dimensions, packaging, etc.
The 0402CS Series chip inductors from Coilcraft feature exceptionally high Q factors, tight inductance tolerance, and high self‑resonant frequencies. They are available in a range of inductance values from 1 nH to 100 nH with RoHS‑compliant terminations.

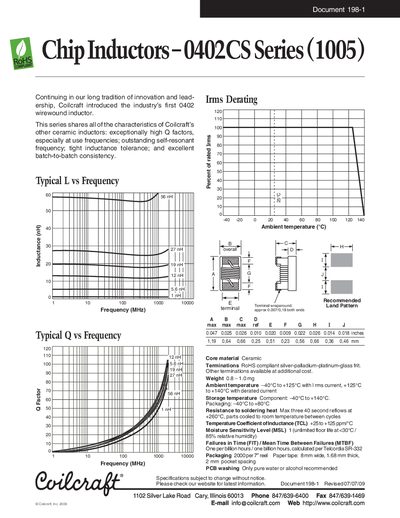

The document lists detailed electrical specifications, temperature ranges, moisture sensitivity, and packaging options, including standard 2000‑part reels and designer’s kits. Ordering instructions, tolerance codes, and recommended soldering practices are also provided.
| Inductance tolerance | 5% (G=2% J=5% for stocked values) |
|---|---|
| Self‑resonant frequency (SRF) | >6 GHz |
| Maximum operating temperature | +125 °C |
| Weight per part | 0.8‑1.0 mg |
The TCL is +25 to +125 ppm/°C.
