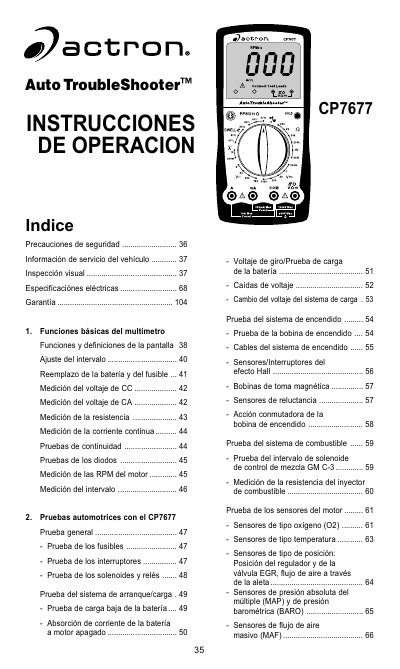

Actron 35CP7677 Auto Troubleshooter User Manual

About this manual

This document is the Spanish-language user manual for the Actron 35CP7677 Auto Troubleshooter. It provides detailed instructions on operating the digital multimeter included with the device, explaining screen definitions, safety precautions, and how to perform various measurements such as voltage, resistance, current, RPM, and dwell time.

The guide also covers extensive automotive diagnostic procedures specific to the 35CP7677 model. These include testing fuses, switches, solenoids, relays, battery systems (load tests, cranking voltage), ignition systems (coils, Hall effect sensors), fuel systems (injectors), and various engine sensors including O2, temperature, MAP, BARO, and MAF sensors. This manual is written in Spanish.

What's inside

• Precauciones de seguridad
• Información de servicio del vehículo
• Inspección visual
• Funciones básicas del multímetro
• Ajuste del intervalo
• Reemplazo de la batería y del fusible
• Medición del voltaje de CC
• Pruebas automotrices con el CP7677
• Prueba de los fusibles
• Prueba del sistema de arranque/carga

Specifications

Frequently asked questions

What does the interval setting mean on the multimeter?

The interval refers to the maximum value that can be measured by the multimeter with the rotary switch in that position.

What should I do if '1' or '-1' appears on the screen?

This indicates an excessive interval; you must increment the range until a valid value is displayed.

Where can I find vehicle service information?

You should consult your local Automotive Parts Department or local retail automotive parts stores for specific vehicle service information.
