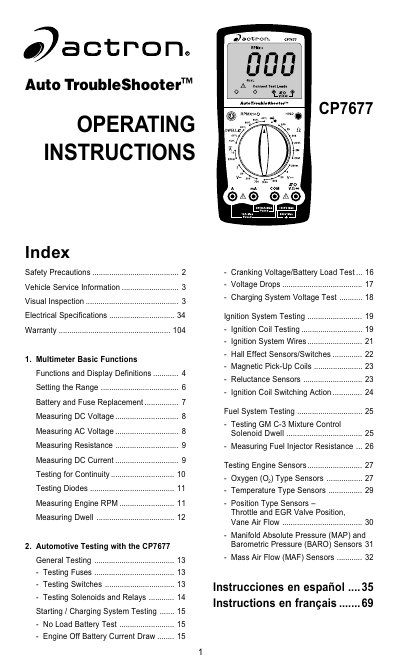

This document is the operating instructions for the CP7677 auto troubleshooter™, which introduces the basic functions of the product, testing methods, test items, etc.
This manual provides operating instructions for the Actron CP7677 Auto Troubleshooter. It begins with essential safety guidelines to prevent injury or vehicle damage during testing and outlines sources for obtaining vehicle service information. The guide emphasizes performing a thorough visual inspection of hoses, wiring, and connectors before starting any diagnostic procedure.
| DC Volts Range | 0 to 1000V |
|---|---|
| Resistance Range | 0.1 ℘ to 20M℘ |
| DC Amps Range | 0 to 10A |
| AC Volts Range | 0 to 750V |
A new 9 Volt battery must be installed before using the digital multimeter.
Use a 1/4" x 1-1/4", 10A, 250V, fast acting fuse or a 5mm x 20mm 315mA, 250V fast acting fuse.
If "1" or "-1" appears on the left side of the display, the multimeter is set to a range that is too small.
