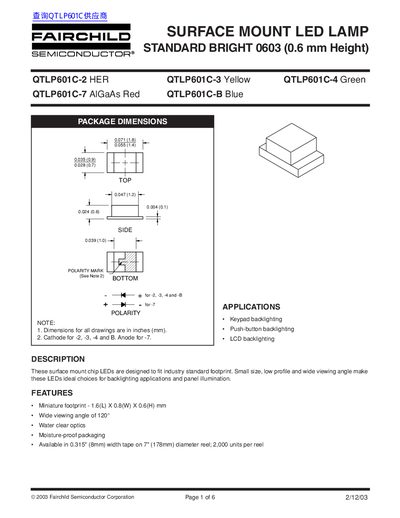

This document is a specification sheet for the QTLP601C series of LEDs. This series of LEDs has small size, low profile and wide viewing angle, making them ideal choices for backlighting applications and panel illumination.
The document describes the Fairchild Semiconductor QTLP601C series, which includes red (QTLP601C-7), green (QTLP601C-4), yellow (QTLP601C-3), blue (QTLP601C-B), and amber (QTLP601C-2) variants. These surface mount chip LEDs are designed to fit the industry standard 0603 footprint with a low profile of 0.6 mm height.
| Footprint Size | 1.6(L) X 0.8(W) X 0.6(H) mm |
|---|---|
| Viewing Angle | 120° |
| Operating Temperature Range | -40 to +85 °C |
The series is available in Amber (QTLP601C-2), Yellow (QTLP601C-3), Green (QTLP601C-4), Red (QTLP601C-7), and Blue (QTLP601C-B).
The LEDs have a miniature footprint measuring 1.6 mm in length, 0.8 mm in width, and 0.6 mm in height.
The recommended maximum soldering time for leads is 5 seconds at a temperature of 260°C.
