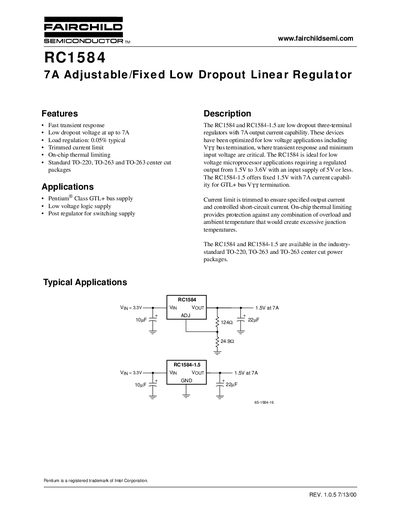

The RC1584 and RC1584-1.5 are low dropout three-terminal regulators with 7A output current capability. These devices have been optimized for low voltage applications including VTT bus termination, where transient response and minimum input voltage are critical. The RC1584 is ideal for low voltage microprocessor applications requiring a regulated output from 1.5V to 3.6V with an input supply of 5V or less. The RC1584-1.5 offers fixed 1.5V with 7A current capability for GTL+ bus VTT termination. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload and ambient temperature that would create excessive junction temperatures. The RC1584 and RC1584-1.5 are available in the industry-standard TO-220, TO-263 and TO-263 center cut power packages.
The RC1584 is a three-terminal low dropout linear regulator available with an output current capability of up to 7A. It features fast transient response and can provide regulated outputs from 1.5V to 3.6V using an input supply of 5V or less. The device includes on-chip thermal limiting and a trimmed current limit for protection against overload.
| Output Current Capability | 7A |
|---|---|
| Current Limit (Typical) | 8 A |
| Thermal Shutdown Temperature | 150 °C |
The RC1584 has an output current capability of up to 7A.
The device is available in TO-220, TO-263, and TO-263 center cut power packages.
The regulator develops a 1.25V reference voltage between the output pin and the adjust pin.
