This document provides the specifications of LED displays, including size, emitted material, current, voltage, wavelength, etc.

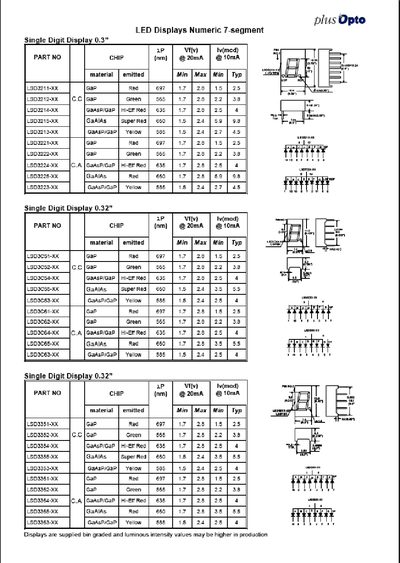

This document is a technical datasheet from PLUS Opto covering a range of single-digit numeric 7-segment LED displays. The product line includes display sizes ranging from 0.3 inches to 2.3 inches.
The datasheet provides detailed specifications for multiple part numbers, listing the chip type (such as GaP, GaAsP/GaP, and GaAlAs), emitted wavelength in nanometers, and luminous intensity values at 10mA and 20mA currents.
| Display Type | Numeric 7-segment |
|---|---|
| Digit Configuration | Single Digit |
| Available Sizes | 0.3" to 2.3" |
| Current Rating (Typical) | @ 10mA and @ 20mA |
The height of a single digit display in the 0.3-inch size is 0.3 inches.
The maximum forward voltage for these displays is 28 volts.
