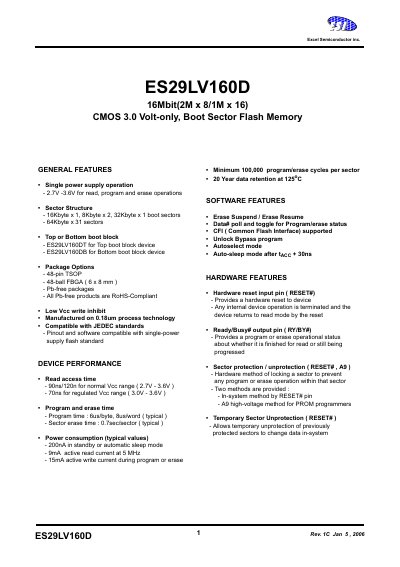

ES29LV160D is a 16Mbit(2M x 8/1M x 16) CMOS 3.0 Volt-only, Boot Sector Flash Memory produced by Excel Semiconductor. The product supports single power supply, with a voltage range of 2.7V -3.6V, and supports read, write and erase operations. The product uses a storage structure with 16Kbyte x 1, 8Kbyte x 2, 32Kbyte x 1 boot sectors, and 64Kbyte x 31 sectors. The product packaging options are 48-pin TSOP and 48-ball FBGA, both of which are lead-free and RoHS-compliant. The product is manufactured using 0.18um process technology and is compatible with JEDEC standards. The pinout and software are compatible with single-power supply flash standards.
The ES29LV160D is a 16 megabit (2M x 8 or 1M x 16) CMOS 3.0 volt-only flash memory device manufactured by Excel Semiconductor. It features configurable boot sectors, top or bottom boot block options, and supports both TSOP and FBGA package types.
| Memory Capacity | 16Mbit (2M x 8/1M x 16) |
|---|---|
| Voltage Range | 2.7V - 3.6V |
| Read Access Time (Normal) | 90ns/120ns |
| Read Access Time (Regulated) | 70ns |
| Program Time | 6us/byte, 8us/word |
| Sector Erase Time | 0.7sec/sector |
| Standby Current | 200nA |
| Active Read Current | 9mA at 5 MHz |
| Endurance | 100,000 cycles/sector |
| Data Retention | 20 years at 125°C |
The device is available in 48-pin TSOP and 48-ball FBGA (6 x 8 mm) packages.
Yes, all Pb-free products are RoHS-Compliant.
