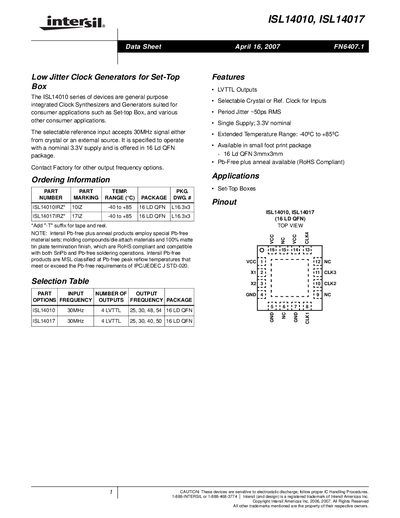

ISL14010, ISL14017 are low jitter clock generators from Intersil for consumer applications such as set-top box. It can accept 30MHz signal from crystal or external source and is specified to operate with a nominal 3.3V supply. It is offered in 16 Ld QFN package.
The document describes the ISL14010 and ISL14017 series of integrated Clock Synthesizers and Generators designed for consumer applications such as Set-Top Boxes. These devices accept a selectable 30MHz signal from an external crystal or source and operate with a nominal 3.3V supply in a 16-pin QFN package.
The datasheet provides comprehensive technical specifications including DC electrical characteristics, AC performance curves for period jitter versus load capacitance, absolute maximum ratings, thermal information, and a pinout description for the 16 LD QFN package.
| Supply Voltage | 3.0V to 3.6V (Nominal 3.3V) |
|---|---|
| Supply Current | 15 mA max |
| Period Jitter | ~50ps RMS |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 16 LD QFN 3mmx3mm |
| Crystal Frequency | 30 MHz |
The device operates with a nominal 3.3V supply.
Yes, the selectable reference input accepts a 30MHz signal either from a crystal or an external source.
The typical period jitter is approximately 50ps RMS.
