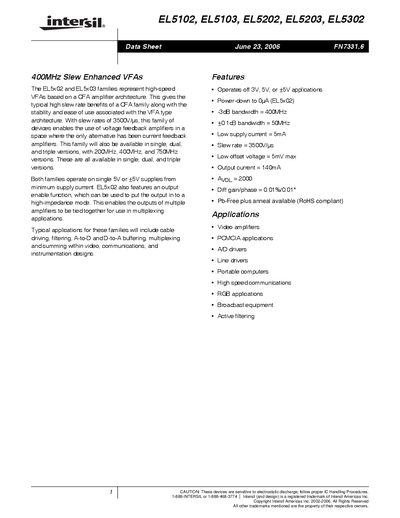

intersil EL5102 EL5103 EL5202 EL5203 EL5302 datasheet

EL5102, EL5103, EL5202, EL5203, EL5302 400MHz Enhanced Voltage Feedback Amplifiers

Brand: Intersil
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 17
File format: PDF
File size: 1.7 MB
Published: 05 June, 2012
Updated: 30 September, 2023
Models: EL5102, EL5103, EL5202, EL5203, EL5302
MD5 checksum: D99673A6E61F04C7C60CAD9A44AA251C
PDF: intersil EL5102 EL5103 EL5202 EL5203 EL5302 datasheet PDF

About this manual

This document describes the EL5x02 and EL5x03 families, which are high-speed Voltage Feedback Amplifiers (VFAs) based on a Current Feedback Amplifier (CFA) architecture. These devices offer typical CFA benefits like high slew rates of 3500V/us combined with VFA stability and ease of use.

What's inside

Features
Applications
Ordering Information
Pinouts
Absolute Maximum Ratings
DC Electrical Specifications
Closed Loop AC Electrical Specifications
Typical Performance Curves

Specifications

-3dB Bandwidth	400MHz
+0.1dB Bandwidth	50MHz
Slew Rate	3500V/us
Supply Voltage	3V, 5V, or +5V
Low Supply Current	5mA
Output Current	140mA

Frequently asked questions

What is the typical application for these amplifiers?

Typical applications include cable driving, filtering, A-to-D and D-to-A buffering, multiplexing, and summing within video, communications, and instrumentation designs.

Do these devices support power-down?

Yes, the EL5x02 family features an output enable function that can put the output into a high-impedance mode for use in multiplexing applications.
