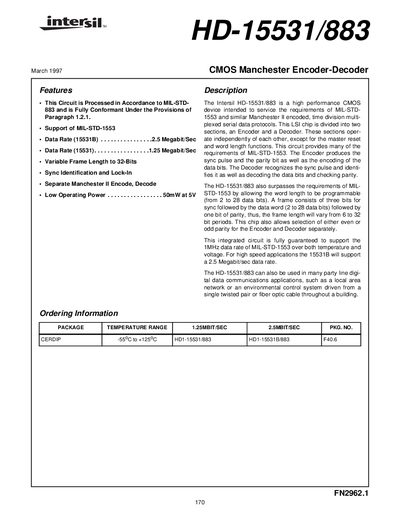

HD-15531/883 is a Manchester Encoder-Decoder chip produced by Intersil, which supports MIL-STD-1553, and supports 1.25Mbit/s and 2.5Mbit/s data rates, supports data lengths from 2 to 28 bits, and has low power consumption.
The Intersil HD-15531/883 is a high performance CMOS integrated circuit intended to service the requirements of MIL-STD-1553 and similar Manchester II encoded, time division multiplexed serial data protocols. The device consists of two independent sections: an Encoder that produces sync pulses, parity bits, and encodes data, and a Decoder that recognizes sync pulses, identifies them, decodes data bits, and checks parity.
| Data Rate (Standard) | 1.25 Megabit/Sec |
|---|---|
| Data Rate (High Speed) | 2.5 Megabit/Sec |
| Operating Temperature Range | -55°C to +125°C |
| Supply Voltage | +4.5V to +5.5V |
| Package Temperature Range | -55°C to +125°C |
| Gate Count | 250 Gates |
Yes, the circuit is processed in accordance with MIL-STD-883 and is fully conformant under its provisions.
Yes, the device allows the word length to be programmable from 2 to 28 data bits.
