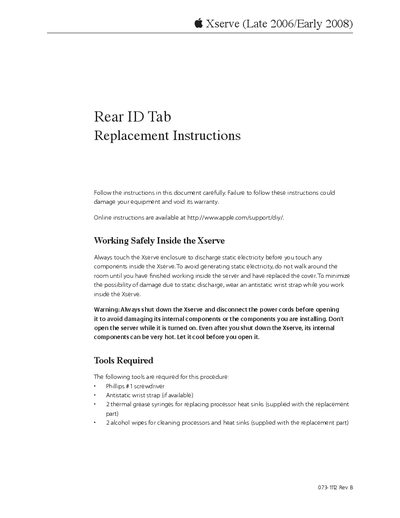

Apple Xserve Late 2006 Early 2008 Rear ID Tab Replacement Instructions

About this manual

This document provides DIY replacement instructions for the Rear ID Tab on Apple Xserve servers (Late 2006/Early 2008). It outlines necessary tools, such as a Phillips #1 screwdriver and an antistatic wrist strap, and emphasizes safety precautions regarding static electricity and hot internal components.

The guide details a comprehensive disassembly process to access the rear ID tab. Users must remove the server from the rack, take off the top cover, and sequentially remove power supplies, PCI riser cards, expansion cards, airflow ducts, fan arrays, I/O cables, processor heat sinks, and the logic board before replacing the tab.

What's inside

• Working Safely
• Tools Required
• Removing from Rack
• Opening the Xserve
• Removing Power Supplies
• Removing PCI Riser Cards
• Removing Airflow Duct
• Removing Fan Array
• Replacing Components
• Closing the Xserve

Frequently asked questions

What tools are required for this procedure?

A Phillips #1 screwdriver, an antistatic wrist strap (if available), thermal grease syringes, and alcohol wipes.

How long should the server cool before opening?

You must let it cool down for 5 to 10 minutes before you open it.

What parts must be removed before taking out the rear ID tab?

You must remove both power supplies, PCI riser cards, expansion cards, airflow duct, fan array, I/O cable, processor heat sinks, and logic board.
