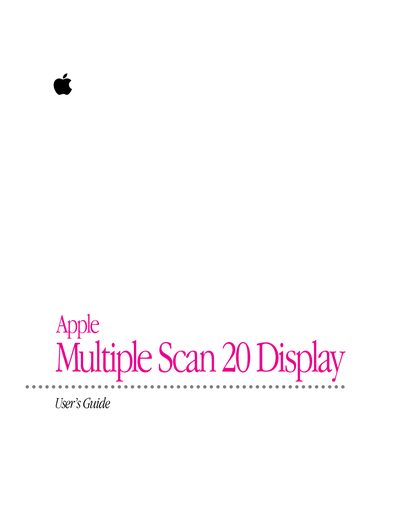

Apple Multiple Scan 20 Display User Guide

About this manual

The Apple Multiple Scan 20 Display is a two-page Trinitron color monitor with a diagonal viewable image size of 19.1 inches. This manual covers important safety instructions, setup procedures including connecting to a computer and keyboard, and the installation of display software.

Once set up, users can utilize the Control Strip to change screen resolution, adjust picture settings such as brightness, contrast, centering, rotation, and convergence, and configure energy-saving features like ColorSync.

What's inside

• Important safety instructions
• Getting ready to setup
• Connecting the monitor to your computer
• Installing the display software
• Working with the Control Strip
• Adjusting the Picture
• Conserving energy
• Troubleshooting

Specifications

Frequently asked questions

What safety precautions should be taken when disconnecting power?

Always disconnect the power plug by pulling the plug itself, not the cord, especially if the equipment is damaged or exposed to moisture.

What is the diagonal viewable image size of this monitor?

The Apple Multiple Scan 20 Display has a diagonal viewable image size of 19.1 inches.

What type of connector is used for the monitor cable?

The monitor uses a 15-pin miniature D-type connector.
