This article introduces the LT6011 dual operational amplifier, which features 25µV input precision, micropower operation, and a wide 2.7V to 36V supply range. It is housed in a tiny 3mm × 3mm DFN package, enabling picoampere input currents and rail-to-rail output swing.

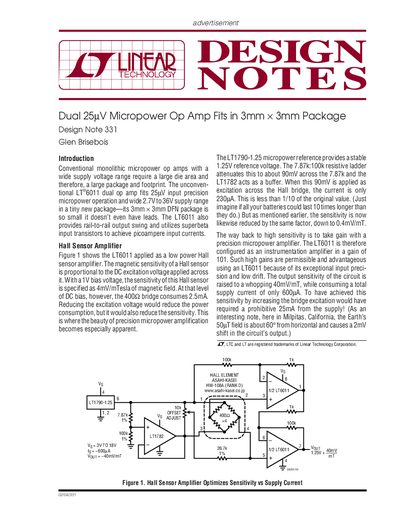

This document is a design note (DN331) from Linear Technology Corporation regarding the LT6011 dual op amp. The device fits in a tiny 3mm x 3mm DFN package without leads and supports a wide supply voltage range of 2.7V to 36V while maintaining 25uV input precision.
The device operates with a wide supply range from 2.7V to 36V.
The total supply current for this application is only 600uA.
