Digital power management is emerging as a key requirement in complex high reliability applications. It allows complex multirail systems to be efficiently debugged via PC-based software tools, avoiding time-consuming hardware changes. Digital power management provides real-time telemetry data and fault logs, enabling fast diagnosis of power system failures and implementation of corrective action. DC/DC converters with digital management functionality enable the development of green power systems that optimize energy usage while meeting system performance targets. This article shows how performance, reliability, and energy efficiency are improved in network switches and routers, base stations and servers, as well as industrial and medical equipment through the use of the LTC2974 quad-channel digital power management IC.

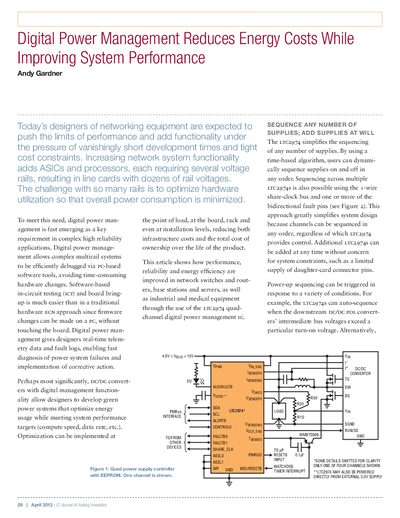

The document introduces the Linear Technology LTC2974, a quad-channel digital power management integrated circuit designed to reduce energy costs while improving system performance in networking equipment. It addresses challenges related to managing multiple voltage rails by offering efficient debugging via PC-based software tools and real-time telemetry data.
Key features highlighted include dynamic sequencing of any number of supplies using a time-based algorithm, versatile fault management with bidirectional fault pins, and accurate voltage monitoring through a digital servo loop. The note also covers precise load current monitoring using inductor DCR sensing with temperature compensation.
The LTC2974 simplifies the sequencing of any number of supplies using a time-based algorithm.
It uses bidirectional fault pins to establish fault response dependencies between channels.
The LTC2974's digital servo loop minimizes rail-voltage drift to better than +0.25% accuracy over temperature.
