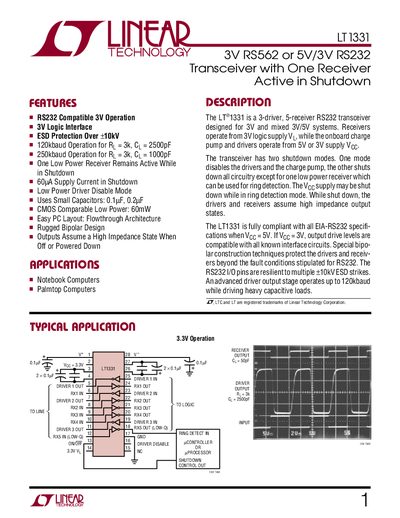

This datasheet provides the features and characteristics of the LT1331. The LT1331 is a 3-driver, 5-receiver RS232 transceiver designed for 3V and mixed 3V/5V systems. Receivers operate from 3V logic supply VL, while the onboard charge pump and drivers operate from 5V or 3V supply VCC. The transceiver has two shutdown modes. One mode disables the drivers and the charge pump, the other shuts down all circuitry except for one low power receiver which can be used for ring detection. The VCC supply may be shut down while in ring detection mode. While shut down, the drivers and receivers assume high impedance output states. When VCC = 5V, the LT1331 is fully compliant with all EIA-RS232 specifications. If VCC = 3V, output drive levels are compatible with all known interface circuits. Special bipolar construction techniques protect the drivers and receivers beyond the fault conditions stipulated for RS232. The RS232 I/O pins are resilient to multiple ±10kV ESD strikes. An advanced driver output stage operates up to 120kbaud while driving heavy capacitive loads.
The LT1331 is a 3-driver, 5-receiver RS232 transceiver designed for 3V and mixed 3V/5V systems. It features two shutdown modes: one disables drivers and the charge pump, while the other shuts down all circuitry except for one low-power receiver used for ring detection.
The device is fully compliant with EIA-RS232 specifications when Vcc equals 5V. When operating at 3V, output drive levels remain compatible with known interface circuits. The transceiver utilizes a rugged bipolar design and offers an advanced driver output stage capable of operation up to 120kbaud while driving heavy capacitive loads.
| Logic Interface | 3V Logic Interface |
|---|---|
| ESD Protection | +10kV |
| Data Rate (RL = 3k, CL = 2500pF) | 120kbaud |
| Supply Current in Shutdown | 60uA |
The LT1331 is a 3-driver, 5-receiver RS232 transceiver.
When off or powered down, the drivers and receivers assume high impedance output states.
