This document introduces a 10A high performance point-of-load DC/DC µModule regulator with a 4.5V to 28V input, 0.6V to 5V output, and a 15mm × 15mm × 2.8mm package.

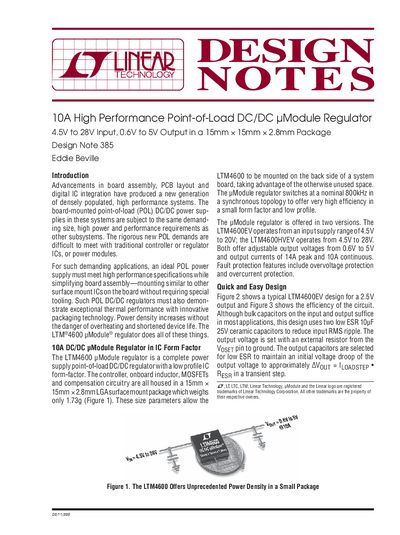

This document describes the LTM4600 uModule regulator, a complete power supply designed for densely populated systems. It features an IC form-factor package containing the controller, onboard inductor, and MOSFETs, allowing it to be mounted on the back side of system boards without special tooling.
| Input Voltage Range (EV) | 4.5V to 20V |
|---|---|
| Input Voltage Range (HVE) | 4.5V to 28V |
| Output Voltage Range | 0.6V to 5V |
| Continuous Output Current | 10A |
| Peak Output Current | 14A |
| Switching Frequency | 800kHz |
| Package Dimensions | 15mm x 15mm x 2.8mm |
| Package Weight | 1.73g |
Yes, two modules can be paralleled to double the output current to 20A.
The package has a thermal resistance of 6°C/W junction-to-case.
