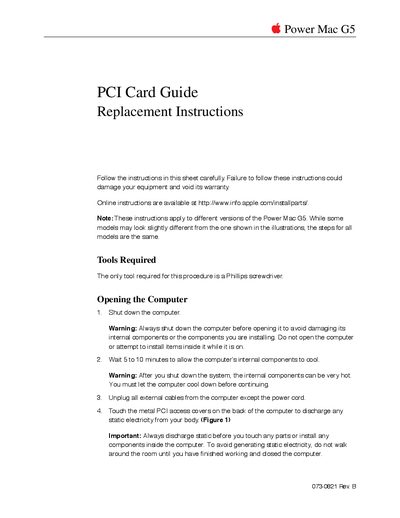

Apple Power Mac G5 PCI Card Guide Replacement Instructions

About this manual

This document provides replacement instructions for the PCI Card Guide in Apple Power Mac G5 computers. It details the necessary tools, safety precautions regarding static electricity and heat, and the specific steps to open the enclosure, remove the old component, install the new one, and close the system.

The procedure involves shutting down the computer, discharging static electricity by touching metal covers, removing the side access panel and air deflector, unscrewing the PCI card guide from the logic board, sliding it out of the PCI divider, and then reversing these steps to install the replacement part. The manual emphasizes ensuring all parts are correctly seated before powering on the device.

What's inside

• Tools Required
• Opening the Computer
• Removing the Installed PCI Card Guide
• Installing the Replacement PCI Card Guide
• Closing the Computer

Frequently asked questions

What tool is required for this procedure?

The only tool required for this procedure is a Phillips screwdriver.

How long should you wait after shutting down the computer before opening it?

You must wait 5 to 10 minutes to allow the internal components to cool.

What happens if the air deflector is not replaced?

The Power Mac G5 computer will not function properly.
