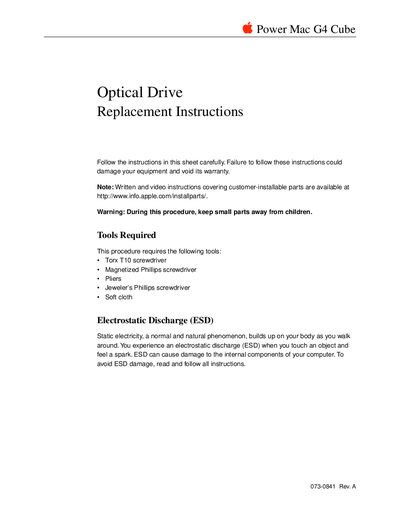

Apple Power Mac G4 Cube Optical Drive Replacement Instructions

About this manual

This document provides step-by-step instructions for replacing the optical drive (CD-RW or DVD-ROM) in a Power Mac G4 Cube. It details the necessary tools, such as Torx T10 and magnetized Phillips screwdrivers, and emphasizes safety precautions regarding electrostatic discharge (ESD) and handling hot internal components.

The guide covers the complete disassembly process, starting with removing the computer core from the enclosure, followed by detaching the top plate assembly. It then instructs on disconnecting cables and removing the drive before installing a new unit and reassembling the system.

What's inside

• Tools Required
• Electrostatic Discharge (ESD)
• Removing the Computer Core From the Enclosure
• Removing the Top Plate Assembly
• Removing the Installed Optical Drive
• Installing the New Optical Drive

Frequently asked questions

What tools are required for this replacement?

The procedure requires a Torx T10 screwdriver, a magnetized Phillips screwdriver, pliers, and a jeweler's Phillips screwdriver.

Is this guide specific to certain optical drive types?

No, the removal and installation procedure is identical whether the installed drive is a CD-RW or a DVD-ROM.

Where can I find additional video instructions?

Written and video instructions covering customer-installable parts are available at http://www.info.apple.com/installparts/.
