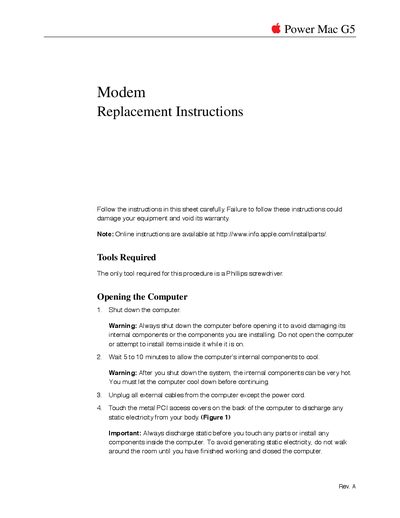

Apple Power Mac G5 Modem Replacement Instructions

About this manual

This document provides instructions for replacing a modem in an Apple Power Mac G5. It specifies that only a Phillips screwdriver is required and outlines safety precautions regarding static electricity and heat before opening the computer case.

The guide details the process of removing the side access panel, disconnecting the modem filter cable, and swapping the modem board on the logic board. It concludes with steps for reassembling the unit, emphasizing the importance of reinstalling the air deflector.

What's inside

• Tools Required
• Opening the Computer
• Removing the Installed Modem
• Installing the Replacement Modem
• Closing the Computer

Frequently asked questions

What tool is required to replace the modem?

The only tool needed for this procedure is a Phillips screwdriver.

How long must you wait after shutting down the computer before opening it?

You must wait 5 to 10 minutes to allow internal components to cool.

How many screws secure the modem board?

There are two screws that secure the modem board.
