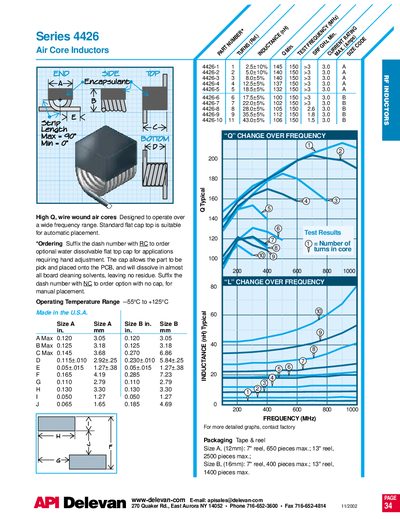

This document is a product manual for the DeLevan 4426 series air core inductors. It introduces the features, dimensions, electrical performance, etc. of the series inductors.
This document provides technical data for the API Delevan Series 4426 Air Core Inductors. These high Q, wire-wound components are designed to operate over a wide frequency range from DC to 1000 MHz. The standard design features a flat cap top suitable for automatic placement on PCBs.
| Operating Temperature Range | -55°C to +125°C |
|---|---|
| Construction Type | High Q, wire wound air cores |
| Standard Cap Feature | Flat cap top suitable for automatic placement |
Suffix the dash number with BC to order the optional water dissolvable flat top cap.
The components are designed to operate between -55°C and +125°C.
A 7-inch reel can hold a maximum of 400 pieces of the Size B model.
Add the suffix NC to the dash number to specify an option with no cap.
