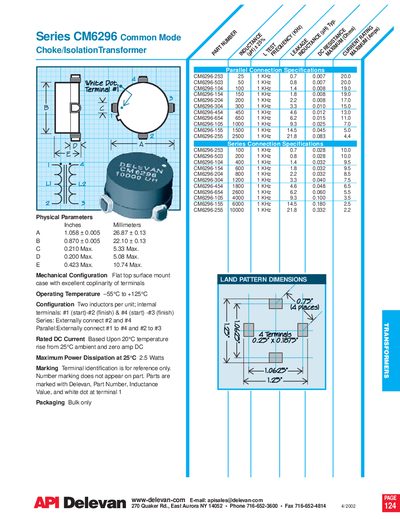

This document describes the features and characteristics of the CM6296 series common mode choke/isolation transformer produced by Delevan, including parameters such as leakage inductance, inductance, current rating, and DC resistance.
The document describes the Delevan CM6296 series of common mode chokes and isolation transformers. It details the physical dimensions in both inches and millimeters, specifying a flat top surface mount case with excellent coplanarity of terminals.
Key operational parameters include an operating temperature range from -55°C to +125°C and a maximum power dissipation of 2.5 Watts at 25°C ambient. The device features two inductors per unit with specific internal terminal configurations for series or parallel connection.
