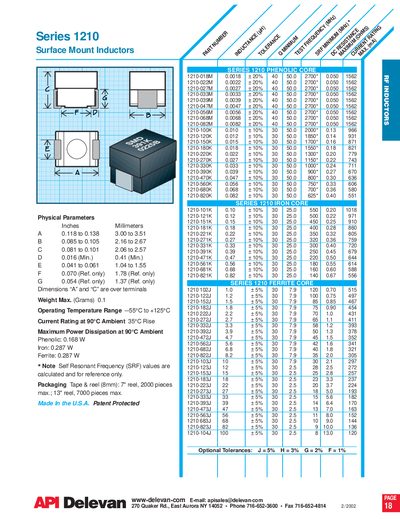

The document provides information on RF inductors. It introduces the characteristics and parameters of different models of 1210 surface mount inductors, including inductance value, tolerance, minimum quality factor, test frequency, DC resistance, and maximum current rating. The document serves as a reference for users of RF inductors in selecting the appropriate model.
The API Series 1210 surface‑mount inductors are specified with detailed physical parameters, temperature range, current rating and power dissipation limits. Dimensions, weight and packaging options are listed for each part number.
Performance graphs show inductance change versus temperature and frequency response for selected values. For more detailed graphs, contact the factory.
| Weight Max. | 0.1 g |
|---|---|
| Operating Temperature Range | -55 °C to +125 °C |
| Maximum Power Dissipation (Phenolic) | 0.168 W |
| Maximum Power Dissipation (Iron) | 0.287 W |
| Maximum Power Dissipation (Ferrite) | 0.287 W |
| Packaging (Tape & Reel) | 7" reel, 2000 pcs; 13" reel, 7000 pcs |
The inductors operate from –55 °C up to +125 °C.
It can dissipate up to 0.168 W at 90 °C ambient.
They are supplied on tape and reel: a 7‑inch reel holding up to 2,000 pieces or a 13‑inch reel holding up to 7,000 pieces.
