The document introduces the RF inductor products of Delevan, including model, inductance value, maximum current rating, DC resistance, test frequency, etc.

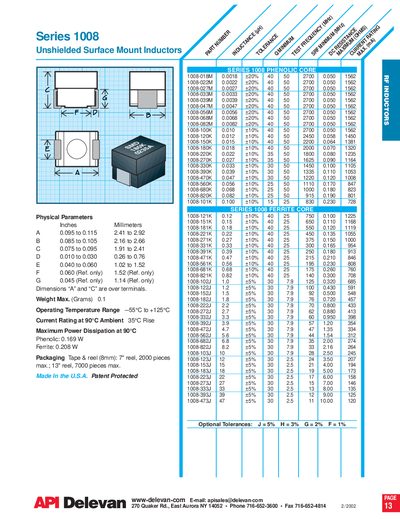

The Series 1008 unshielded surface‑mount inductors from Delevan are offered in a wide range of inductance values for compact electronic designs. Physical dimensions are listed in both inches and millimetres, and the parts are supplied on tape‑and‑reel for automated assembly.
Key specifications include a maximum weight of 0.1 g, an operating temperature range from –55 °C to +125 °C, and maximum power dissipation of 0.169 W for phenolic cores and 0.208 W for ferrite cores. Optional tolerance grades (J, H, G, F) are also provided.
| Length (inches) | 0.095 to 0.115 |
|---|---|
| Length (mm) | 2.41 to 2.92 |
| Weight (grams) | 0.1 |
| Operating Temperature Range | -55°C to +125°C |
| Maximum Power Dissipation (Phenolic) | 0.169 W |
| Maximum Power Dissipation (Ferrite) | 0.208 W |
| Packaging (8 mm tape & reel) | 7" reel, 2000 pieces; 13" reel, 7000 pieces max |
| Optional Tolerances | J=5% H=3% G=2% F=1% |
The maximum weight is 0.1 grams.
They operate from –55 °C up to +125 °C.
Phenolic cores dissipate up to 0.169 W and ferrite cores up to 0.208 W.
Tolerance grades J (5 %), H (3 %), G (2 %), and F (1 %) are offered.
