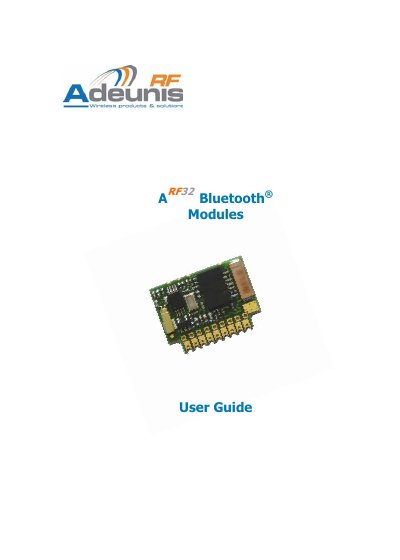

This user guide describes the ARF32 devices, their options and accessories.
The ADEUNIS ARF32 is a Bluetooth compliant duplex communication module designed for the worldwide 2.45 GHz frequency band with a range of up to 20 meters. It fully complies with the V2.0 Bluetooth standard and supports data rates up to 723 kbps via an UART data port under the SPP profile.
| Bluetooth Standard | V2.0 |
|---|---|
| Data Rate | 723 kbps |
| Operating Range | >20 m |
| Frequency Band | 2.402 to 2.480 GHz |
| Operating Voltage | 3.3V nominal (2.85 to 3.6 V) |
| Radiated RF Power | 2 mW (3 dBm) |
| Dimensions | 20 x 24 x 4 mm |
The module operates at a nominal 3.3V, with an acceptable range of 2.85 to 3.6 V.
The master can be configured to connect automatically on boot or reset, attempting link establishment up to three times.
The National Semiconductors "Simply Blue Commander" Software can be used to fully set up and use the DemoKit.
