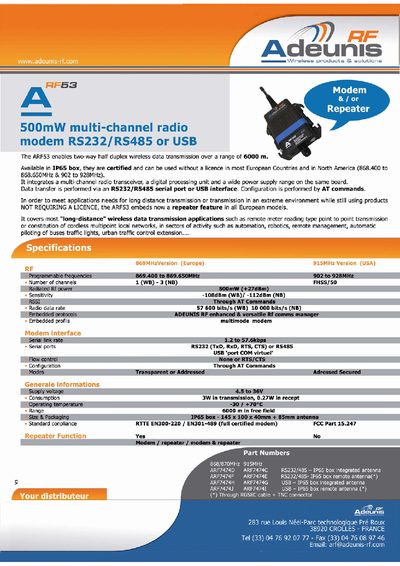

The Adeunis ARF53 is a wireless data transmission device designed for two-way half-duplex communication. It integrates a multi-channel radio transceiver, a digital processing unit, and a wide power supply range on a single board. The device supports configuration via AT commands and offers interfaces including RS232/RS485 serial ports or USB.
| Frequency Range (Europe) | 868.400 to 868.650MHz |
|---|---|
| Frequency Range (USA) | 902 to 928MHz |
| Number of Channels | 1 (WB) - 3 (NB) |
| Sensitivity (Wide Band) | -108dBm |
| Sensitivity (Narrow Band) | -112dBm |
| Radio Data Rate (Wide Band) | 57 600 bits/s |
| Radio Data Rate (Narrow Band) | 10 000 bits/s |
| Power Consumption (Transmission) | 3W |
| Power Consumption (Reception) | 0.27W |
| Range | 6000 m |
No, it is certified and can be used without a licence in most European Countries and in North America.
Data transfer is performed via an RS232/RS485 serial port or USB interface.
Configuration is performed by AT commands.
