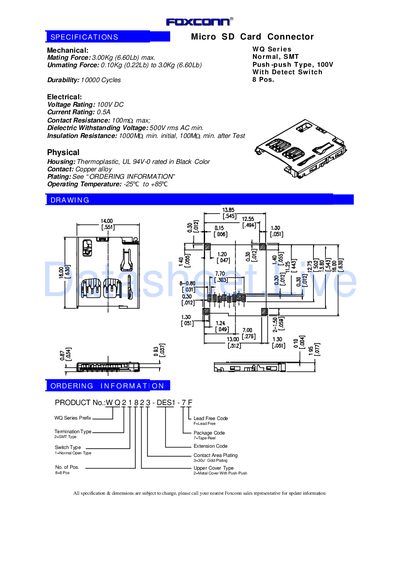

The Foxconn WQ Series Micro SD Card Connector datasheet provides mechanical, electrical and ordering specifications.
The WQ Series Micro SD Card Connector is a normal SMT push‑push type with an integrated detect switch and 8 positions. It offers a 100 V rating, 0.5 A current capability, and a contact resistance of up to 100 mW. Mechanical characteristics include a mating force of 3.00 kg, an unmating force ranging from 0.10 kg to 3.0 kg, and durability of 10 000 mating cycles.
Ordering information is provided with the product number WQ21823‑DES1‑7F. The connector is lead‑free (code F) and uses a 30 µin gold plating on the contact area. It is supplied in a tape‑reel package (code 7) and housed in a UL‑94V‑0 rated black thermoplastic. The operating temperature range is –25 °C to +85 °C.
| Connector Type | SMT Push‑push, 100 V with Detect Switch, 8 Pos. |
|---|---|
| Mating Force | 3.00 kg (6.60 lb) max |
| Unmating Force | 0.10 kg (0.22 lb) to 3.0 kg (6.60 lb) |
| Durability | 10 000 cycles |
| Voltage Rating | 100 V DC |
| Current Rating | 0.5 A |
| Contact Resistance | 100 mW max |
| Dielectric Withstanding Voltage | 500 V rms AC min. |
| Insulation Resistance | 1000 MΩ min. initial, 100 MΩ min. after test |
| Operating Temperature | -25 °C to +85 °C |
It is rated for 100 V DC.
The connector is rated for 10 000 cycles.
The current rating is 0.5 A.
