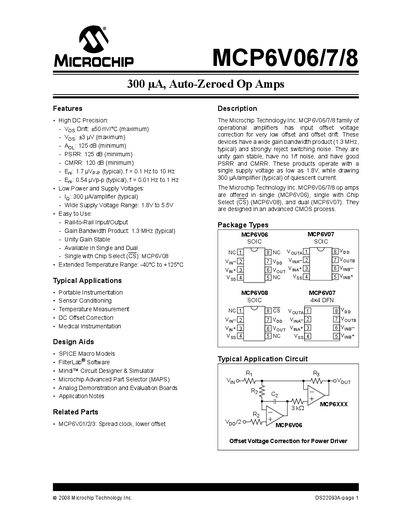

The MCP6V06/7/8 family of operational amplifiers from Microchip Technology Inc. features high DC precision, low power consumption, and a wide supply voltage range. These amplifiers are suitable for portable instrumentation, sensor conditioning, temperature measurement, DC offset correction, and medical instrumentation applications.
The MCP6V06/7/8 family of operational amplifiers from Microchip offers ultra‑low input offset voltage, low drift, and rail‑to‑rail I/O. They operate from a single supply of 1.8 V to 5.5 V while drawing only 300 pA per amplifier typical.
Key features include a gain‑bandwidth product of 1.3 MHz, CMRR of 120 dB (min), PSRR of 125 dB (min), and operation over an extended temperature range of –40 °C to +125 °C. The devices are available in single, dual, and single‑with‑chip‑select packages.
| Supply Voltage Range | 1.8 V to 5.5 V |
|---|---|
| Quiescent Current per Amplifier | 300 pA typical |
| Gain Bandwidth Product | 1.3 MHz typical |
| Input Offset Voltage (Vos) | -3 µV to +3 µV (typical at 25 °C) |
| Input Bias Current | 0 pA to 6 pA typical |
| CMRR | 120 dB minimum (typical 130 dB) |
| PSRR | 125 dB minimum |
| Operating Temperature Range | -40 °C to +125 °C |
The MCP6V06/7/8 draws 300 pA per amplifier typical.
They operate from 1.8 V up to 5.5 V.
The typical gain‑bandwidth product is 1.3 MHz.
Input offset voltage is specified from –3 µV to +3 µV at 25 °C.
