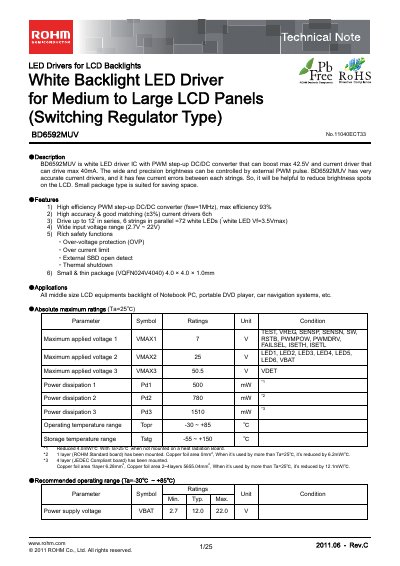

BD6592MUV is a high efficiency white LED driver IC with PWM step-up DC/DC converter that can boost max 42.5V and current driver that can drive max 40mA. The wide and precision brightness can be controlled by external PWM pulse.
The BD6592MUV is a white LED driver IC with a PWM step‑up DC/DC converter designed for medium to large LCD backlights. It can boost up to 42.5 V and drive up to 40 mA per LED, offering precise brightness control via external PWM.
Key features include high efficiency (up to 93 %), a wide 2.7 V‑22 V input range, 6‑channel current drivers with tight matching, and safety functions such as over‑voltage protection, over‑current limit, external SBD open detection and thermal shutdown. The small 4 × 4 × 1 mm package suits space‑constrained designs.
| Input voltage range | 2.7 V – 22 V |
|---|---|
| Maximum efficiency | 93 % |
| Switching frequency | 1 MHz |
| Package size | 4.0 × 4.0 × 1.0 mm |
| LED strings supported | Up to 12 in series, 6 strings parallel (72 LEDs) |
The device can operate with an input voltage up to 22 V.
It can drive up to 12 LEDs in series and 6 strings in parallel, for a total of 72 white LEDs.
The converter operates at a typical switching frequency of 1 MHz.
It includes over‑voltage protection, over‑current limit, external SBD open detection, and thermal shutdown.
