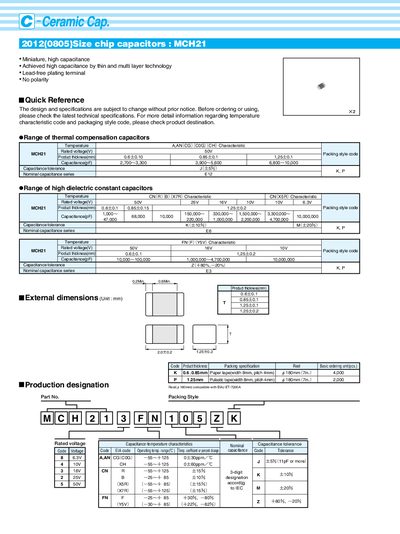

This document introduces the external dimensions, temperature characteristics, packaging style, capacitance range, and features of the MCH21 chip capacitors. The chip capacitors achieve high capacitance through thin and multi-layer technology and have non-polarity and lead-free plating terminals. Depending on the temperature characteristics and capacitance range, this model is suitable for thermal compensation capacitors, high dielectric constant capacitors, and miniature high capacitance capacitors.
The document describes the MCH21 series of lead-free, multi-layer ceramic chip capacitors available in 0805 size. These components are designed to achieve high capacitance through thin and multi-layer technology and feature no polarity.
The catalog covers three main types: thermal compensation capacitors (A, AN/CG, COG, CH), high dielectric constant capacitors (CN/R, B, X7R, X5R), and Y5V temperature characteristic capacitors. It provides detailed tables for product numbers, rated voltages, capacitance ranges, tolerances, and packing specifications including carrier tape and reel dimensions.
| Product Size | 0805 size (1.25+0.2 x 0.6+0.1 mm) |
|---|---|
| Terminal Plating | Lead-free plating terminal |
| Polarity | No polarity |
| Capacitance Tolerance (J/K) | +/- 5% |
Yes, the reels are compatible with EIAJ ET-7200A and bulk cases comply with EIAJ ET-7201A.
The product thickness is 0.6 mm plus or minus 0.1 mm.
The capacitance tolerance is plus or minus 10 percent.
