The data table provides the specifications for C series ceramic capacitors, including dimensions, capacitance, voltage, applications etc.

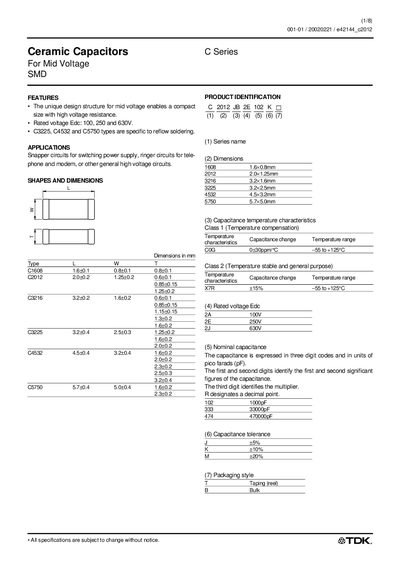

This datasheet describes the C Series ceramic capacitors designed for mid‑voltage applications in surface‑mount devices. It outlines the unique design that enables compact size while offering high voltage resistance, and lists the available rated voltages of 100 V, 250 V, and 630 V.
Detailed tables give the physical dimensions, temperature characteristics, capacitance ranges, tolerance codes, and packaging options for each package type (C1608, C2012, C3216, C3225, C4532, C5750). Part numbers for different tolerance grades and voltage ratings are also provided.
| Rated voltage options | 100 V, 250 V, 630 V |
|---|---|
| Package dimensions for C1608 | 1.6 mm × 0.8 mm × 0.8 mm |
| Temperature class for Class 1 | C0G (0 ± 30 ppm/°C) |
| Temperature class for Class 2 | X7R (+159 % over temperature range) |
The C Series capacitors are offered with rated voltages of 100 V, 250 V, and 630 V.
Class 1 capacitors use the C0G temperature characteristic (0 ± 30 ppm/°C).
The C1608 package measures 1.6 mm × 0.8 mm × 0.8 mm.
