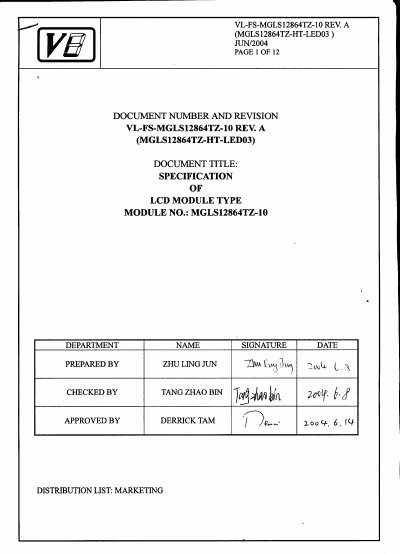

This document describes the features and characteristics of the LCD module model MGLS12864TZ-10, including a 128 x 64 dot matrix STN Positive Yellow Transflective LCD graphic module, driving scheme, viewing direction, LCD controller and drivers, display SRAM, and Yellow-Green LED03 backlight.
The MGLS12864TZ-10 is a 128 × 64 dot matrix STN positive yellow transflective LCD graphic module with a 1/64 duty, 1/9 bias driving scheme. It uses a Toshiba T6963C‑0101 controller and a Dragon Driver SA3086A segment driver, and is backlit by a yellow‑green LED array.
The document provides mechanical dimensions, electrical ratings, interface pin definitions, timing diagrams, and environmental limits, allowing designers to integrate the module into portable or embedded equipment.
| Display format | 128 × 64 dots |
|---|---|
| Dot size | 0.39 mm × 0.55 mm |
| Supply voltage (logic) | -0.3 V to +7.0 V |
| Operating temperature (ambient) | -20 °C to +70 °C |
| Backlight forward current | 100 mA |
| Typical supply current (character mode) | 3.4 mA to 5.1 mA |
The module has a resolution of 128 × 64 dots.
It operates from –20 °C to +70 °C ambient temperature.
Logic supply voltage (VDD‑VSS) may range from –0.3 V to +7.0 V.
The yellow‑green LED backlight is rated for a forward current of 100 mA.
