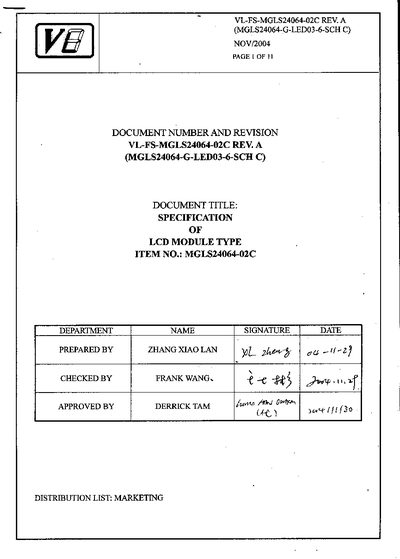

This document is a specification for the MGLS24064-02C LCD module. The LCD module features a 240 x 64 dot STN positive transflective yellow graphic display, with a driving scheme of 1/64 duty and 1/8.7 bias. The viewing direction is 6 o'clock. The LCD controller is a 'TOSHIBA' T6963C flat pack or equivalent, segment drivers are 'TOSHIBA' T6A39 flat pack or equivalent, and common drivers are 'TOSHIBA' T6A40 flat pack or equivalent. The module also includes 8KB display SRAM and a yellow-green LED03 backlight.
The MGLS24064-02C is a 240 × 64‑dot STN positive transflective yellow‑green LCD graphic module with a 1/64 duty, 1/8.7 bias driving scheme. It uses a Toshiba T6963C controller and includes an 8 KB display SRAM and a yellow‑green LED backlight.
The document provides mechanical dimensions, absolute maximum electrical ratings, typical electrical characteristics, timing diagrams, and environmental limits such as temperature and humidity. It also lists the pinout for interface signals and notes on cosmetic conditions and handling precautions.
| Display format | 240 (Horizontal) x 64 (Vertical) dots |
|---|---|
| Outline dimensions | 180.0 mm (W) x 65.0 mm (H) x 14.0 mm (D) |
| Viewing area | 132.0 mm (W) x 39.0 mm (H) |
| Active area | 127.15 mm (W) x 33.87 mm (H) |
| Dot size | 0.48 mm (W) x 0.48 mm (H) |
| Dot pitch | 0.53 mm |
| Logic supply voltage (VDD) | 4.75 V – 5.25 V |
| LCD drive supply voltage (VLCD) | 14.3 V – 15.3 V |
| Humidity limits | 95 % RH for ≤40 °C, <95 % RH for >40 °C |
| Backlight type | Yellow‑Green LED O3 |
It has a resolution of 240 horizontal by 64 vertical dots.
The outline dimensions are 180 mm wide, 65 mm high and 14 mm deep.
