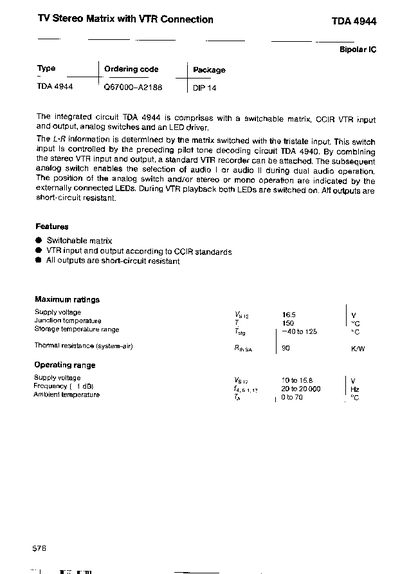

The TDA 4944 is a bipolar integrated circuit that combines a switchable matrix, CCIR‑compatible VTR input and output, analog switches, and an LED driver for channel indication. It supports mono, stereo, and dual‑audio operation with short‑circuit‑resistant outputs.
The document lists electrical ratings, frequency response, temperature limits, pin functions, and example application circuitry, allowing designers to integrate the IC into VTR‑based audio systems.
| Frequency response (‑1 dB) | 20 to 20 000 Hz |
|---|---|
| Ambient temperature | ‑40 to 70 °C |
| Output short‑circuit protection | All outputs short‑circuit resistant |
Its frequency response is from 20 Hz to 20 kHz (‑1 dB).
Yes, all outputs are short‑circuit resistant.
