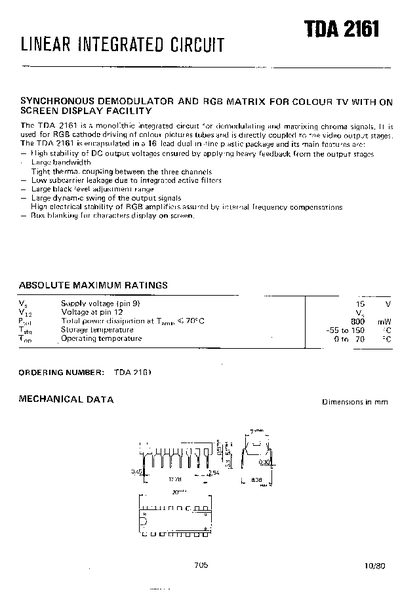

The TDA 2161 is a monolithic linear integrated circuit used for demodulating and matrixing colour TV signals and driving RGB cathode tubes. It is supplied in a 16‑lead dual‑in‑line plastic package and offers high stability, large bandwidth, and low sub‑carrier leakage.
The document lists absolute maximum ratings, mechanical dimensions, thermal data, and detailed electrical characteristics such as supply voltage, current consumption, and gain values. Pin‑out descriptions and application notes explain how to connect the IC for colour video processing.
| Supply current (pin 9) | 35‑46 mA |
|---|---|
| Operating temperature range | 0‑70 °C |
| Storage temperature range | -55‑150 °C |
| Maximum supply voltage | 15 V |
It is encapsulated in a 16‑lead dual‑in‑line plastic package.
