This is a connector product from L-COM company, with model number CS2N25MF-2.5-OD1. It is a 25-pin connector with a voltage rating of 30V and a dielectric strength of 500VAC. The insulator material is black plastic and the contacts are copper alloy with gold plating.

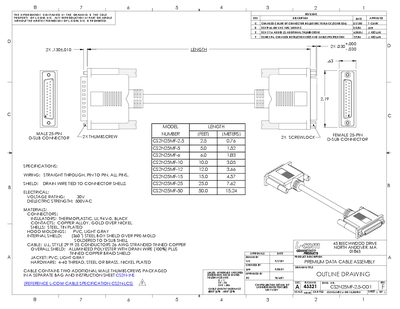

The document provides a detailed description of the CS2N25MF-2.5-OD1 premium data cable assembly, including its construction, materials, and connector types. It lists the insulators, contacts, shells, hood moldings, cable conductors, shielding, jacket, and hardware specifications.
Electrical characteristics such as voltage rating, dielectric strength, and shielding connections are also given, along with drawing revision information and approval details.
| Insulators | Thermoplastic, UL 94V-0, Black |
|---|---|
| Contacts | Copper alloy, gold over nickel |
| Shells | Steel, tin plated |
| Hood moldings | PVC, Light Gray |
| Cable conductors | 25 conductors 26 AWG stranded tinned copper |
| Overall shield | Aluminized polyester with drain wire (100%) |
| Additional shield | Tinned copper braid shield |
| Jacket | PVC, Light Gray |
| Hardware | 4-40 thread, steel or brass, nickel plated |
| Dielectric strength | 500 VAC |
| Shield connection | Drain wire tied to connector shells |
It has a dielectric strength of 500 VAC.
The insulators are made of thermoplastic, UL 94V‑0, black.
The cable contains 25 conductors of 26 AWG stranded tinned copper.
