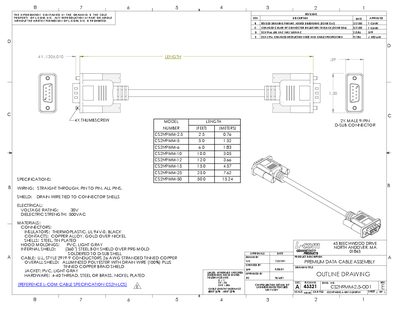

This is an engineering drawing of the L-COM CS2N9MM-2.5-OD1 data cable
The CS2N9MM-2.5 is a D‑sub cable assembly offered by L‑COM. It features a 9‑pin connector with straight‑through wiring and a drain wire tied to the connector shells for shielding.
The datasheet lists key specifications such as a 30 V voltage rating, 500 VAC dielectric strength, thermoplastic UL‑94V‑0 insulators, copper‑alloy contacts gold‑over‑nickel, and an overall aluminized polyester shield with a PVC jacket.
| Voltage rating | 30 V |
|---|---|
| Dielectric strength | 500 VAC |
| Insulator material | Thermoplastic, UL 94V‑0, black |
| Contact plating | Copper alloy, gold over nickel |
| Overall shield | Aluminized polyester with drain wire |
The cable is rated for 30 V.
It has a dielectric strength of 500 VAC.
The cable uses an aluminized polyester overall shield with a drain wire tied to the connector shells.
The insulators are thermoplastic, UL 94V‑0 rated, and black.
