L-Com CS2N9MF-2.5-OD1 is a 9-pin D-sub connector with 9 26AWG tinned copper conductors.
The CS2N9MF-2.5-OD1 is a premium molded cable assembly with a female 9‑pin D‑sub connector. It provides straight‑through pin‑to‑pin wiring, a drain wire tied to the connector shells, and a 30 V voltage rating.

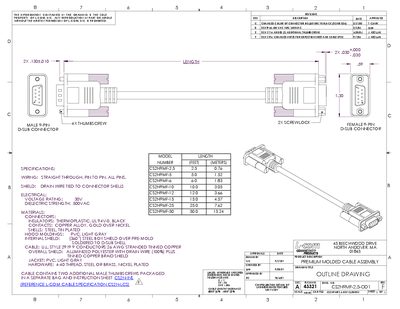

The document lists electrical, material, and dimensional specifications, including a dielectric strength of 500 VAC, PVC light‑gray jacket, and a length tolerance of ±0.05 in. Revision history and configuration details are also provided.
| Voltage rating | 30 V |
|---|---|
| Dielectric strength | 500 VAC |
| Connector type | Female 9‑pin D‑sub |
| Cable conductors | 9 conductors, 26 AWG stranded tinned copper |
| Overall shield | Aluminized polyester with drain wire plus tinned copper braid |
| Jacket material | PVC, light gray |
The cable assembly is rated for 30 V.
It uses a female 9‑pin D‑sub connector.
The dielectric strength is specified as 500 VAC.
The jacket is made of PVC in a light‑gray color.
