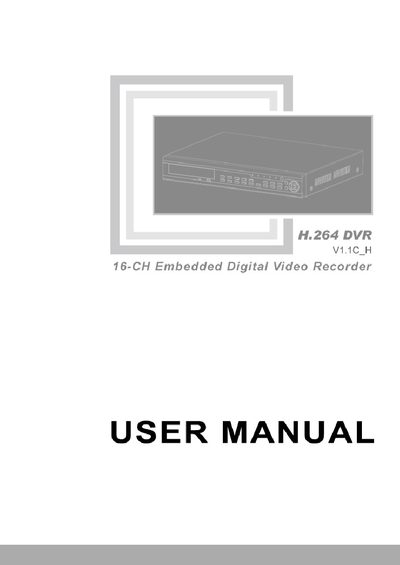

This manual introduces the features and usage of 16 Channel Embedded Digital Video Recorder.
This manual provides step‑by‑step instructions for installing and configuring a 16‑channel embedded digital video recorder. It covers hardware setup such as HDD installation, power connection, and front‑panel wiring, as well as software setup using the IE client and mobile apps.
The document also details system features like H.264 video compression, multi‑channel recording modes, PTZ control via RS‑485, network transmission, and backup options. Technical specifications, safety notices, and a parts list are included for reference.
| Video compression format | H.264 |
|---|---|
| Operating system | Embedded LINUX |
| VGA output resolution | Max 1280x1024@60Hz |
| HDMI output resolution | Max 1920x1080p@60Hz |
| Video inputs | 16‑ch BNC |
| Video outputs | 2‑ch BNC |
| Audio inputs | 16‑ch |
| Audio output | 1‑ch |
| Recording resolution (PAL) | D1 (704×576) / CIF (352×288) |
| Recording resolution (NTSC) | D1 (704×480) / CIF (352×240) |
| Recording frame rate | PAL 25 fps, NTSC 30 fps (adjustable) |
| Power supply | DC12 V / 5 A |
| Operating temperature | 0 °C – 50 °C |
| Operating humidity | 10 % – 90 % |
| Dimensions (mm) | 430 W × 345 D × 66 H |
The DVR requires a DC12 V, 5 A power adapter.
It supports 16 video channels.
The recorder uses the H.264 compression format.
VGA output supports up to 1280 × 1024 @ 60 Hz, and HDMI output supports up to 1920 × 1080p @ 60 Hz.
