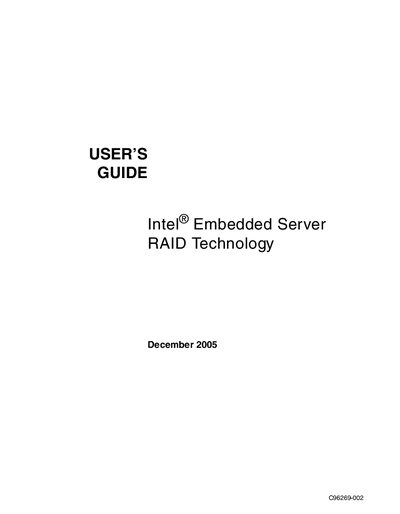

Intel Embedded Server RAID Technology User Guide

This document introduces the use of Intel® Embedded Server RAID Technology products

Brand: Intel
Category: System Tools
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 587 KB
Published: 01 June, 2012
Updated: 30 September, 2023
MD5 checksum: E5D7820D1944421C227AE6011A2DD8D7
PDF: Intel Embedded Server RAID Technology User Guide PDF

About this manual

This guide describes Intel's Embedded Server RAID Technology, a cost‑effective solution that uses four serial ATA ports to deliver higher transfer rates and improved reliability. It supports RAID 0, RAID 1, and RAID 10 and is intended for use with Intel server platforms.

The manual is organized into chapters covering an overview of features, supported RAID levels, BIOS configuration utility, operating‑system installation procedures for Windows, Linux, and NetWare, the Spy Service monitoring program, and a troubleshooting section with common problems and solutions.

What's inside

Overview
RAID Levels
BIOS Configuration Utility
Operating System Installation
Spy Service
Troubleshooting
Preface
Conventions

Specifications

Number of SATA ports	4
Supported RAID levels	RAID 0, RAID 1, RAID 10
Supported operating systems	Windows 2000/2003/XP, Red Hat Linux, SuSE Linux, Novell NetWare

Frequently asked questions

What should I do if drives are not detected?

Make sure the cable ends and power cables are connected properly, then try changing the cables or replacing the drives if needed.

How do I replace a failed drive in a RAID 1 array?

Replace the failed drive with another drive that has the same or greater capacity.
