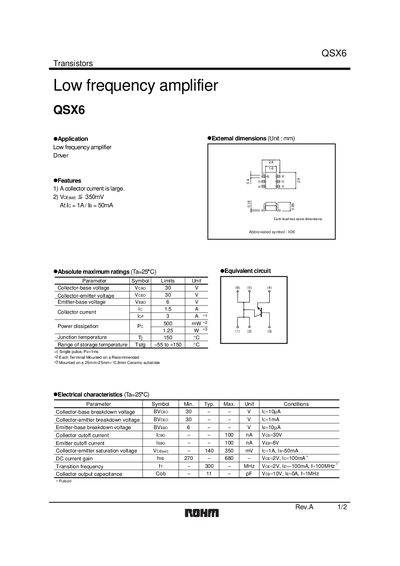

QSX6 is a low frequency amplifier with large collector current and low VCE(sat). It is suitable for applications such as low frequency amplifiers and drivers.
The QSX6 is a low‑frequency amplifier transistor intended for driver applications. The document lists its key features, absolute maximum ratings, and typical application circuits.
Detailed electrical parameters such as collector‑base voltage, collector‑emitter voltage, current limits, power dissipation, and temperature ranges are given, along with packaging information and characteristic curves for both DC and pulsed operation.
| Collector‑base voltage (Vcbo) | 30 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 30 V |
| Emitter‑base voltage (Vebo) | 6 V |
| Maximum collector current (Ic) | 15 A |
| Power dissipation (Pd) | 500 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
The maximum collector current is 15 A.
It is supplied in a TR type tape package with a basic ordering unit of 3000 pieces.
The collector‑emitter breakdown voltage is 30 V.
The device is rated for a junction temperature up to 150 °C and storage from –55 °C to +150 °C.
