This document is a manual for a mobile air conditioner, describing the features and characteristics of the product, including temperature and humidity control, multiple functions, and energy efficiency with low noise.

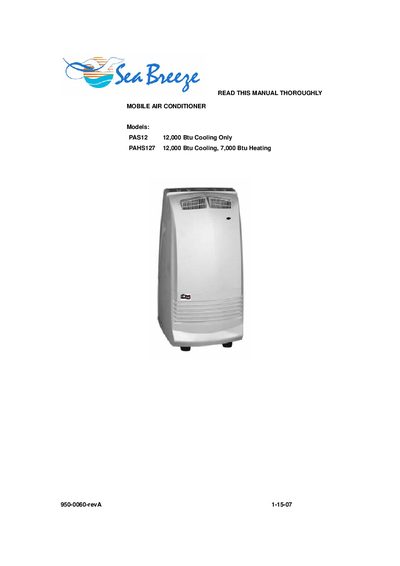

This manual provides instructions for the International Refrigeration Products mobile air conditioner models PAS12 (cooling only) and PAHS127 (cooling and heating). It describes the theory of operation, control panel functions, installation guidelines, and troubleshooting steps.
Safety precautions, power requirements, and warranty information are also included to ensure proper use and maintenance of the units.
| EER Rating | 8.8 Btu/w |
|---|---|
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | N/A (PAS12), 7,000 BTU (PAHS127) |
| Rated Voltage | 115 Vac |
| Rated Frequency | 60 Hz |
| Rated Current | 14.6 Amps |
| Power Input | 1,200 W (cooling) / 1,500 W (heating PAHS127) |
| Cycling Airflow | 174 CFM |
| Refrigerant | R22, 1.21 lbs |
| Noise Max. | 62 dB(A) |
| Net / Gross Weight | 99 / 105.6 lbs |
| Unit Dimensions | 17.7 x 14.5 x 33.7 in |
| Dehumidifying Volume | 13.9 gallons/day |
| BRK Size | 20 A |
The operating range for cooling and dehumidifying is 62 °F to 95 °F.
The power supply should be rated at 115 V ± 6 % and capable of handling a continuous current of 16 A.
The unit has a one‑year limited warranty on parts and a five‑year warranty on the compressor; labor is not covered.
Place the unit at least 20 inches away from a wall or other obstacle and keep a 3 inch clearance from TV sets or radios.
