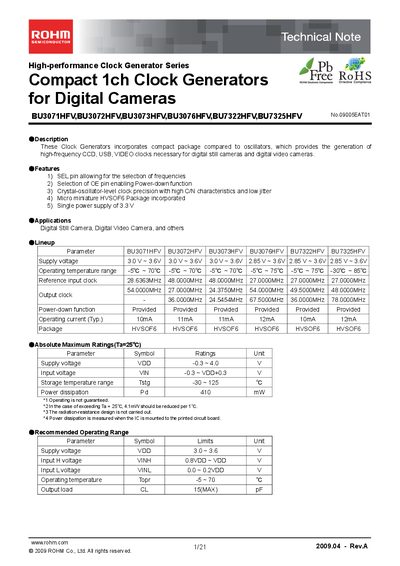

This document introduces ROHM's high-performance clock generator series, which is used to generate high-frequency CCD, USB, and video clocks in digital cameras and digital video cameras. The products feature compact packaging, selectable frequencies, low jitter, and high precision.
The ROHM BU3071HFV is a compact 1‑channel clock generator designed for digital still and video cameras. It offers selectable frequencies, power‑down control, crystal‑oscillator‑level precision, and operates from a single 3.3 V supply.
The document provides detailed electrical characteristics, reference waveforms, jitter measurements, and ordering information for the BU3071HFV and related BU307xHFV parts.
| Supply voltage (typical) | 3.0 V ~ 3.6 V |
|---|---|
| Output clock frequency | 54 MHz |
| Typical operating current | 10 mA |
| Package | HVSOF6 |
| Absolute maximum supply voltage | -0.3 V ~ 4.0 V |
The BU3071HFV operates from 3.0 V to 3.6 V.
Typical operating current is 10 mA.
It provides a 54 MHz output clock.
The device is supplied in an HVSOF6 package.
