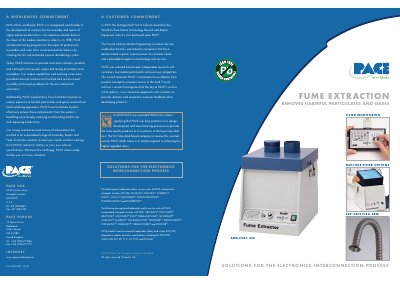

This document introduces the ARM-EVAC 250 fume extraction equipment from PACE, which removes harmful particulates and gases and features ESD safety and a flexible arm design.
The ARM‑EVAC 250 is a heavy‑duty, portable fume extraction unit designed for electronics assembly and repair. It features a rugged 18‑gauge steel housing, brushless motor, and a three‑position speed switch, delivering up to 288 m³/h airflow while keeping noise below 58 dB. The system includes a graphical LED filter‑condition monitor that alerts the operator when a filter change is required.
A variety of filter options are available, from pre‑filters and general‑purpose filters to high‑efficiency cleanroom filters and carbon‑based gas filters. Optional accessories such as a silencer/mobile cart, remote controller, and metal plenum expand the system for multiple workstations and larger work areas.
| Part Number | 8889‑0255 / 8889‑0250 |
|---|---|
| Dimensions (H × W × D) | 393 mm × 282 mm × 365 mm |
| Weight | 1.4 kg (3.1 lb) |
| Power Requirements | 115 V or 230 V AC, 50/60 Hz |
| Noise Level | 58 dB |
| Number of Inlets | Two 75 mm (3 in) inlets |
| Maximum Flow Rate | 288 m³/h (170 cfm) per inlet (general‑purpose filter) |
Flux fumes can cause occupational asthma, chronic bronchitis, allergic reactions, contact dermatitis, and other respiratory problems.
