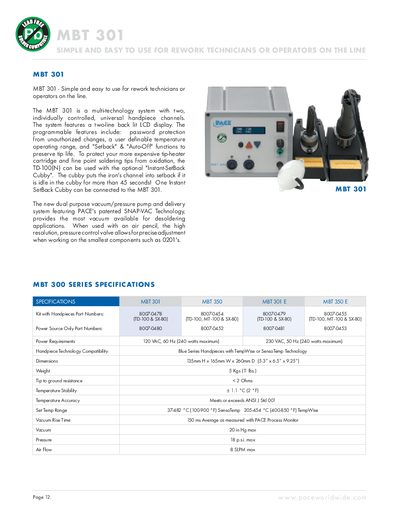

The mbT 301 is a multi-technology system with two individually controlled, universal handpiece channels.
The MBT 301 is a multitechnology rework system with two individually controlled universal handpiece channels and a back‑lit LCD display. It includes password protection, user‑definable temperature ranges, and "Setback" & "Auto‑Off" functions to preserve tip life. Optional Instant‑SetBack Cubby can place the iron in setback after 45 seconds of inactivity.
The unit features PACE’s SNAP‑VAC dual‑purpose vacuum/pressure pump, delivering up to 20 in Hg vacuum and 18 psi pressure for precise desoldering. Technical specifications such as power requirements, dimensions, weight, and temperature ranges are listed in the manual, along with compatible handpiece technologies and optional accessories.
| Power Requirements | 120 VAC, 60 Hz (240 W max) |
|---|---|
| Dimensions | 135 mm H × 165 mm W × 260 mm D |
| Weight | 5 kg (11 lb) |
| Tip‑to‑ground resistance | < 2 Ω |
| Temperature Stability | ±1 °C (±2 °F) |
| Set Temperature Range | 37‑482 °C (100‑900 °F) |
| Vacuum Rise Time | 150 ms |
| Maximum Vacuum | 20 in Hg |
| Maximum Pressure | 18 psi |
| Air Flow | 8 SLPM max |
The unit operates on 120 VAC, 60 Hz with a maximum power consumption of 240 watts.
The MBT 301 provides two individually controlled universal handpiece channels.
Its SNAP‑VAC dual‑purpose pump can generate up to 20 in Hg vacuum for desoldering applications.
