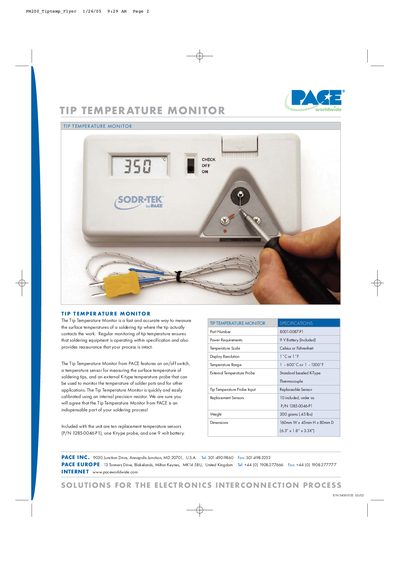

The Tip Temperature Monitor is a fast and accurate way to measure the surface temperatures of a soldering tip. It ensures that soldering equipment is operating within specification and provides reassurance that the soldering process is intact.
The Tip Temperature Monitor provides a fast, accurate way to measure the surface temperature of a soldering tip where it contacts the workpiece. Regular monitoring helps ensure soldering equipment operates within specification and maintains process integrity.
The unit includes an on/off switch, a temperature sensor, a standard beaded K‑type external probe, a 9 V battery, and ten replacement temperature sensors. It offers selectable Celsius or Fahrenheit scales, 1 °C/°F resolution, and a temperature range of 1‑600 °C (1‑1200 °F). Dimensions are 160 mm W × 45 mm H × 80 mm D and it weighs about 200 g.
| Part Number | 8001-0087 |
|---|---|
| Power Requirements | 9V Battery (Included) |
| Temperature Scale | Celsius or Fahrenheit |
| Display Resolution | 1°C or 1°F |
| Temperature Range | 1 - 600°C or 1 - 1200°F |
| External Temperature Probe | Standard beaded KType |
| Weight | 200 grams (0.45 lbs) |
| Dimensions | 160mm W x 45mm H x 80mm D (6.3" x 1.8" x 3.3") |
It is powered by a 9 V battery, which is included with the unit.
Ten replacement temperature sensors are included, part number 1285-00469.
The monitor measures temperatures from 1 °C to 600 °C (or 1 °F to 1200 °F).
