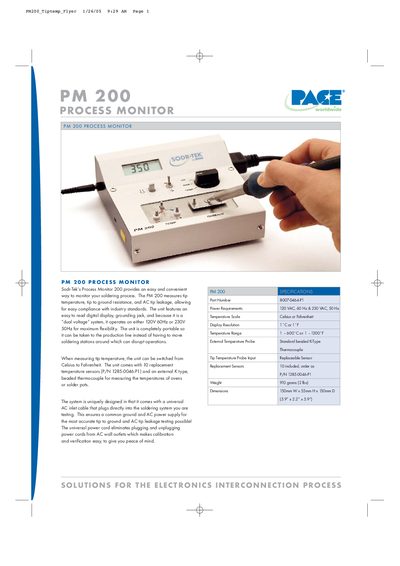

Sodr-Tek PM 200 Process Monitor is a portable device that easily monitors soldering iron tip temperature, tip to ground resistance, and AC tip leakage to ensure compliance with industry standards. It features an easy to read digital display, grounding jack, and because it is a “dual voltage” system, it operates on either 120V 60Hz or 230V 50Hz for maximum flexibility.
The PM200 Process Monitor from Sodr‑Tek provides an easy way to monitor soldering processes. It measures tip temperature, tip‑to‑ground resistance, and AC tip leakage, and features a digital display, grounding jack, and dual‑voltage capability (120 V 60 Hz or 230 V 50 Hz) for flexible use on production lines.
Key specifications include a temperature range of 1‑600 °C (1‑1200 °F), selectable Celsius/Fahrenheit scale, 1 °C/1 °F display resolution, and a universal AC inlet cable. The unit ships with ten replaceable temperature sensors (P/N 1285‑0046‑P1) and a standard beaded K‑type thermocouple for external temperature measurement. It weighs about 10 g and measures 150 mm × 55 mm × 150 mm.
| Power Requirements | 120 VAC, 60 Hz & 230 VAC, 50 Hz |
|---|---|
| Temperature Scale | Celsius or Fahrenheit |
| Display Resolution | 1 °C or 1 °F |
| Temperature Range | 1 – 600 °C or 1 – 1200 °F |
| Replacement Sensors Included | 10 sensors (P/N 1285‑0046‑P1) |
| Weight | 10 g (≈2 lb) |
| Dimensions | 150 mm W × 55 mm H × 150 mm D (5.9" × 2.2" × 5.9") |
It operates on either 120 VAC 60 Hz or 230 VAC 50 Hz.
The unit includes ten replacement temperature sensors (P/N 1285‑0046‑P1).
Yes, the unit can switch between Celsius and Fahrenheit scales.
