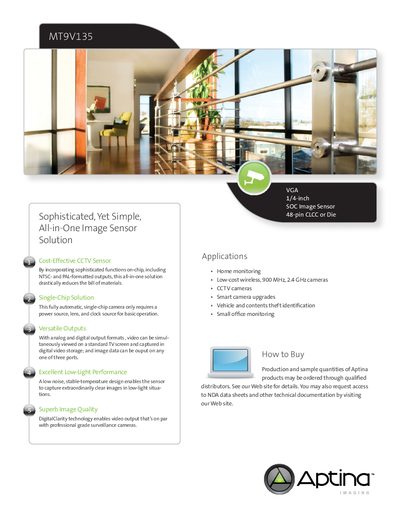

MT9V135 is a high performance image sensor with system-on-chip design, integrating imaging, signal processing and output control functions. It can be used for home monitoring, low cost wireless cameras, surveillance cameras, smart camera upgrades, vehicle and content theft identification, small office monitoring and other scenarios.
The MT9V135 is an all‑in‑one, system‑on‑chip image sensor that integrates analog and digital functions on a single die. It requires only a power source, lens and clock to operate, and can output video to standard TV screens or digital storage via multiple ports.
Key features include DigitalClarity imaging technology, ultra‑low‑power progressive scan, on‑chip image‑flow processing, and a 2‑wire serial programming interface that allows configuration of gain, exposure, frame size, and more. The sensor supports both progressive and interlaced video, parallel or LVDS data formats, and operates over a wide temperature range.
| Optical Format | 1/4-inch |
|---|---|
| Active Array | 640(H) x 480(V) |
| Frame Rate | 30 fps at full resolution |
| Data Rate | 13.5 Mp/s |
| Master Clock | 24‑27 MHz |
| Pixel Size | 5.6 µm x 5.6 µm |
| Dynamic Range | 70 dB |
| Supply Voltage | 2.5‑3.1 V (2.8 V nominal) |
| Power Consumption | 320 mW |
| Operating Temperature | -30°C to +70°C |
| Package | 48‑pin CLCC or Die |
The sensor consumes about 320 mW during operation.
