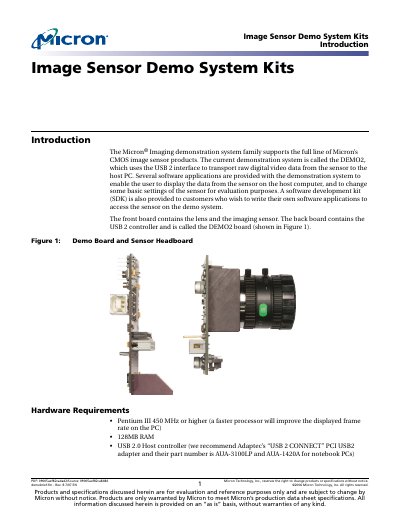

Introduces Micron's Image Sensor Demo System Kits Introduction
The DEMO2 demonstration system is a USB‑2 based platform that transfers raw digital video data from Micron CMOS image sensors to a host PC. It includes a front board with lens and sensor, and a back board that houses the USB controller, FPGA, and memory, allowing up to three frames to be buffered before transfer.
The manual lists the minimum PC hardware (Pentium III 450 MHz, 128 MB RAM, USB 2.0 host controller) and software (Windows 2000 SP2 or Windows XP SP1) needed to run the system, provides a product matrix of supported sensors and lenses, explains board functionality, and gives ordering part numbers for complete demo kits.
| Minimum CPU | Pentium III 450 MHz or higher |
|---|---|
| Minimum RAM | 128 MB |
| USB Interface | USB 2.0 host controller |
| Maximum oscillator frequency | 47 MHz |
| Frame buffer capacity | Up to three full frames |
The system supports Windows 2000 with Service Pack 2 or Windows XP with Service Pack 1.
The board can store up to three complete frames of sensor data.
The DEMO2 board supports a maximum oscillator frequency of 47 MHz.
