The SLD1132VS is a red laser diode produced by Sony. The product has a wavelength of 635nm and is small enough to be used in laser pointers.

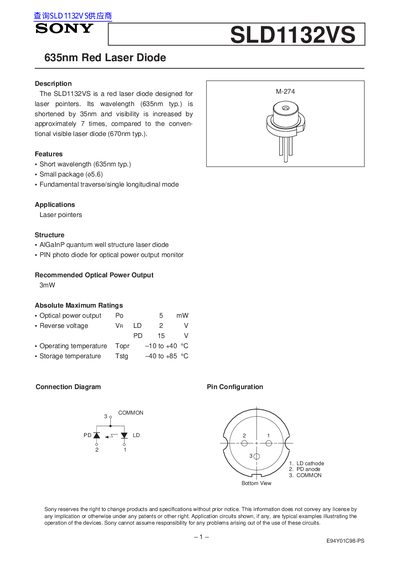

The Sony SLD1132VS is a 635 nm red laser diode intended for laser pointers and similar applications. It features a short wavelength, small 5.6 mm package, and a quantum‑well AlGaInP structure with an integrated PIN photodiode for power monitoring.
The manual provides electrical and optical characteristics such as a typical threshold current of 70 mA, operating voltage around 3 V, and a recommended output power of 3 mW. Safety guidelines include using laser‑blocking goggles and protecting the device from surge currents and electrostatic discharge.
| Wavelength (typ.) | 635 nm |
|---|---|
| Recommended Optical Power Output | 3 mW |
| Threshold current (typ.) | 70 mA |
| Operating voltage (typ.) | 3.0 V |
| Reverse voltage | 2 V |
| Operating temperature range | -10 °C to +40 °C |
The manual recommends an optical power output of 3 mW.
Safety goggles that block infrared rays should be worn, and care must be taken to avoid surge currents and electrostatic discharge.
